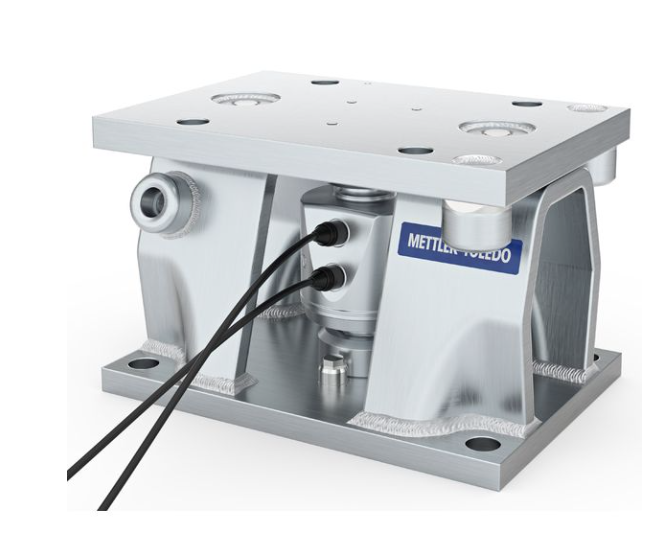

    Stainless Steel SWC615-A Weigh Module 20t Industrial Load Cell Sensor

    Ask Lasest Price
    Brand Name : Mettler Toledo
    Model Number : Weigh Module SWC615-A SS 20t
    Price : Negotiation
    Supply Ability : 2000 set per month
    Delivery Time : 10-30days
    • Product Details
    • Company Profile

    Stainless Steel SWC615-A Weigh Module 20t Industrial Load Cell Sensor

    Stainless Steel SWC615-A Weigh Module 20t – Industrial Load Cell Sensor
    Product Overview

    A compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

    Key Features
    Multi-Purpose Design

    Suitable for static & dynamic tanks, hoppers, mixers, and conveyors. Features a high accuracy, fully approved stainless hermetic load cell for all applications.

    Enhanced Safety

    Includes mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals, and IP68 load cells for maximum reliability.

    Condition Monitoring

    Monitor individual load cells for overload, temperature, zero drift, and other parameters to prevent system shutdowns or measurement errors.

    Technical Specifications
    AttributeValue
    ProductMettler Toledo Load Cell
    Maximum Capacity110,000 lb (50,000 kg)
    MaterialStainless Steel V2A (AISI 304)
    MetrologyOIML C3, NTEP IIIL 10,000
    Load CellPOWERCELL PDX
    AccuracyStandard
    Protection RatingIP68/69k
    Environment/MaterialWash-down/Stainless Steel
    Hazardous ApprovalATEX, FM
    CriticalityCondition monitoring
    Stainless Steel SWC615-A Weigh Module 20t industrial load cell sensor
